Carpet Dyeing Machine For Fur wool blanket coating / setting machine artificial fur

Carpet Dyeing Machine For Fur wool blanket coating / setting machine artificial fur

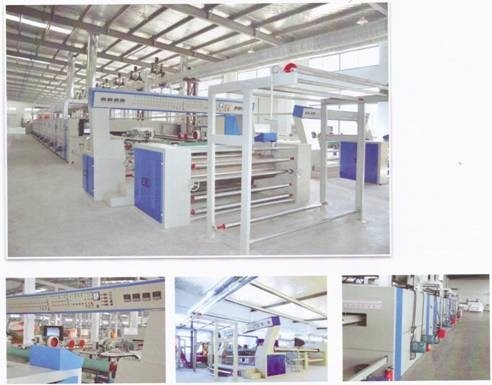

KZM-250 Fur wool blanket coating and setting machine

1. Usage:

The special equipment for artificial fur, carpets in coating and dry baking after treatment

2. Specification

1. Model:KD-250
2. dimensions:L*W*H 35.8X3.9X3.65m
3. Working width: 100-250m (frequency-converting speed)
4. Designed speed: 5-30m/min
5. Heating Method: Heat oil (drying house temperature 220℃), Steam＞0.6Mpa (drying house temperature    145℃), 220℃ Natural or liquefied petroleum gas (drying house temperature 220℃
6. Drive form:Horizontal guide
7. Total power:120kw(8 sections)

Process flow:

warp knitting machine  → fur wool blanket latexing and setting machine  → pre-polishing machine →  printing machine (or use manual plate printing)  →  filtering machine  →  vapor steamer   →  washing machine   →  dehydrator   →  back to sizing machine to dry   →  raising machine   →  brushing machine   →  polishing machine   →  ironing and shearing combining machine   →  inspecting machine   →  cut and slicing   →  wrapping  →  packing to finish product
