Continuous Net-belt Hank Yarn Dyeing Machine for dryness of wool

Continuous Net-belt Hank Yarn Dyeing Machine for dryness of wool

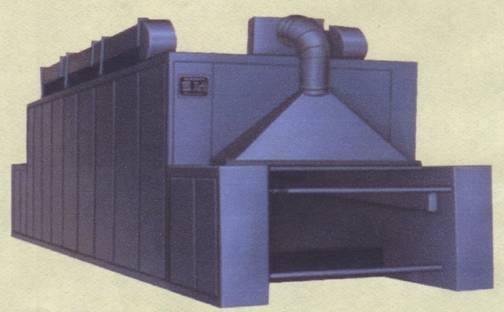

KDDC-3-8 Continuous Net-belt Hank Yarn Dryer

The usage of the products:

The machine is used for the dryness of wool, acrylic fibers and cotton yarn after wet processing. There are different specifications from 3 barns to 8 barns. It is most suitable for drying hank yarns of woolen, cotton, synthetic and any other blended fibers. Wide range of conveyor velocity ratios and automatic temperature control system are equipped to process different fiber quality of the hank yarns to be worked. Good thermal efficiency, maximum drying capacity, safe and easy operation is your assurance.

Standard Features

Body being built with insulated panels with heat-resistant fibre glass material inside to ensure heat insulation.

High efficiency heater complete with automatic temperature control system, guarantees hot air to penetrate through yarns and recirculation within the enclosure.

Driving equipment for the conveyor completely enclosed but easily accessible for maintenance purposes.

Cooling fan installed at both ends to improve the working environment.

Hank- holding bar of light stainless steel for easy handing.

The main technical parameter:

Form:       layer-Continuous Drying.

The height of the intake and exit of the conveyer bar:960mm.

The availability length of the:  1635mm.

The traveling speed of the conveyer bar:  0.2~1.5m/min.

Steam working pressure:    3.5~4kg/cm2.

The temperature of the drying house:  90℃~120℃,automatic temperature control

SPECIFICATIONS:
